General Construction

All Hand Laid Fiberglass.
Wood-free Composite Construction.
Fiberglass Box Beam Stringer Grid Foam Filled
All Exterior Thru-hulls in Stainless or Bronze.
Stainless Rubrail in Black or White.
Optional Hull Colors: Sand, Light Grey, Ice Blue, Sky Blue,
Sea Foam Green, Blue Tone White.

Console

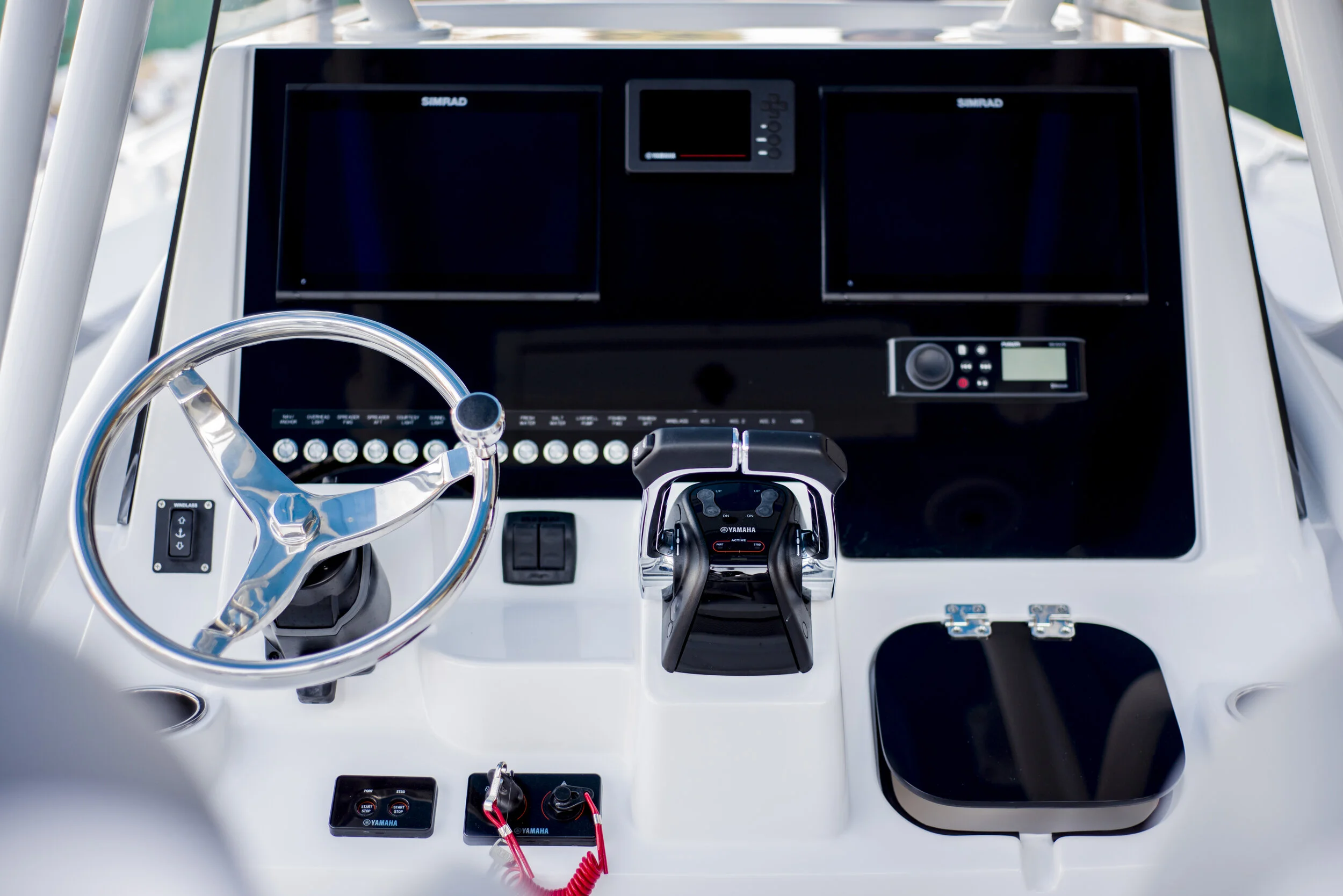

Power Hydraulic Tilt Steering with Selectable Effort

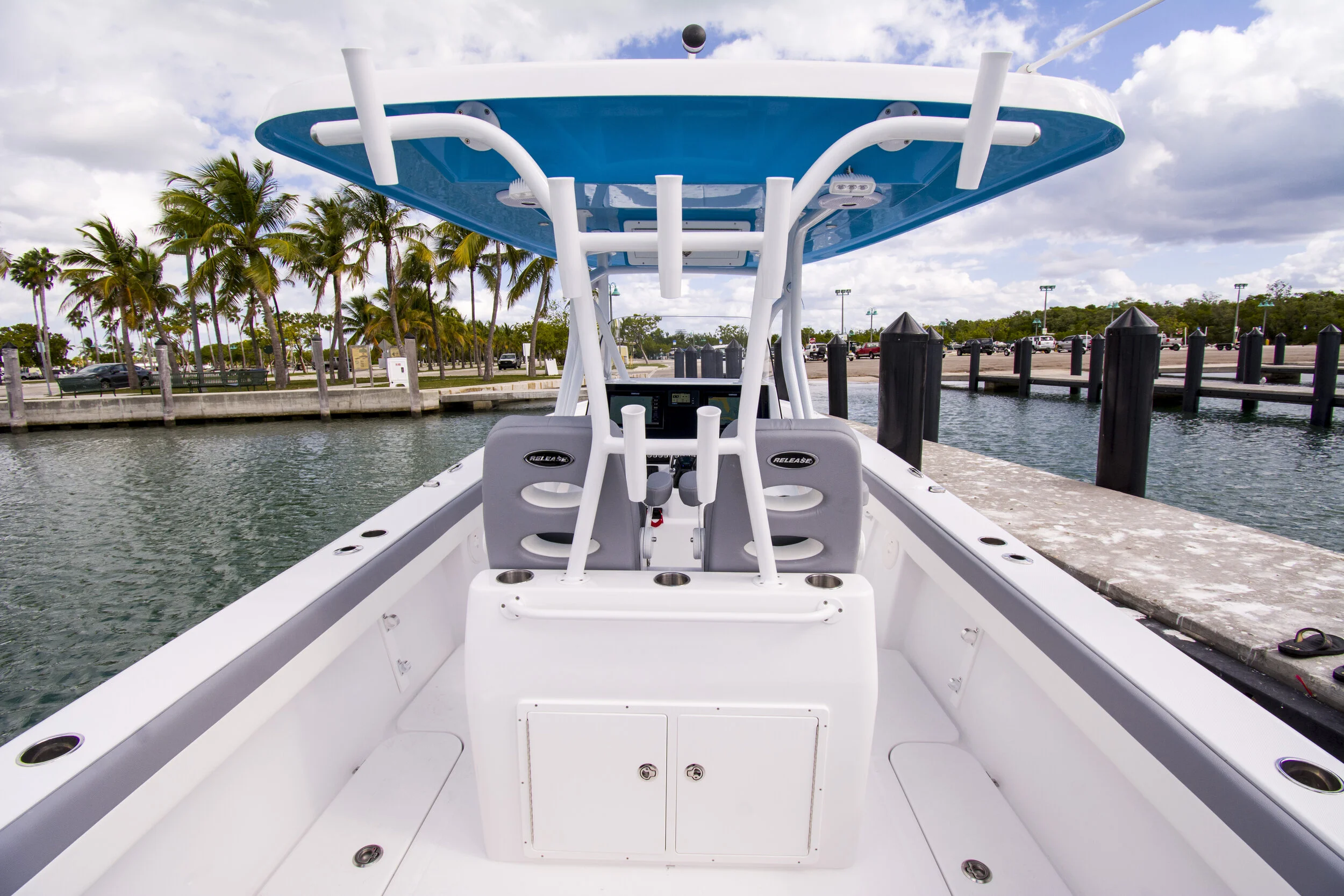

Leaning Post with Pull-up Bolsters
Walk-in Head Compartment Inside Console with Electric Toilet, Holding
Tank, Vanity, Overboard Discharge, Freshwater Shower & Sink
Forward Console Seat
Compass
Plexiglas Windshield

Deck Arrangement

Raw Water Washdown
Fresh Water at Transom
Livewell with Raw Water Plumbing
Auto-retract Trim Tabs with Indicators
Hanging Anchor Locker
Port & Starboard Bow Bench Seats with Storage

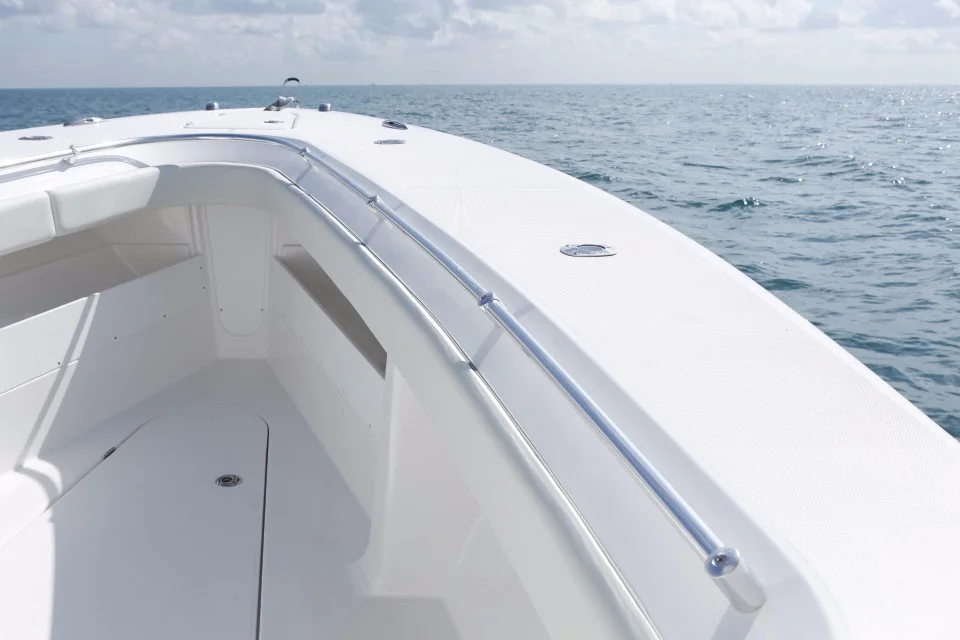

Recessed Bow Rail
3 In-floor Fish Boxes
Cockpit Courtesy Lights
6 Stainless Pull-up Cleats
10 Stainless Gunwale Rod Holders

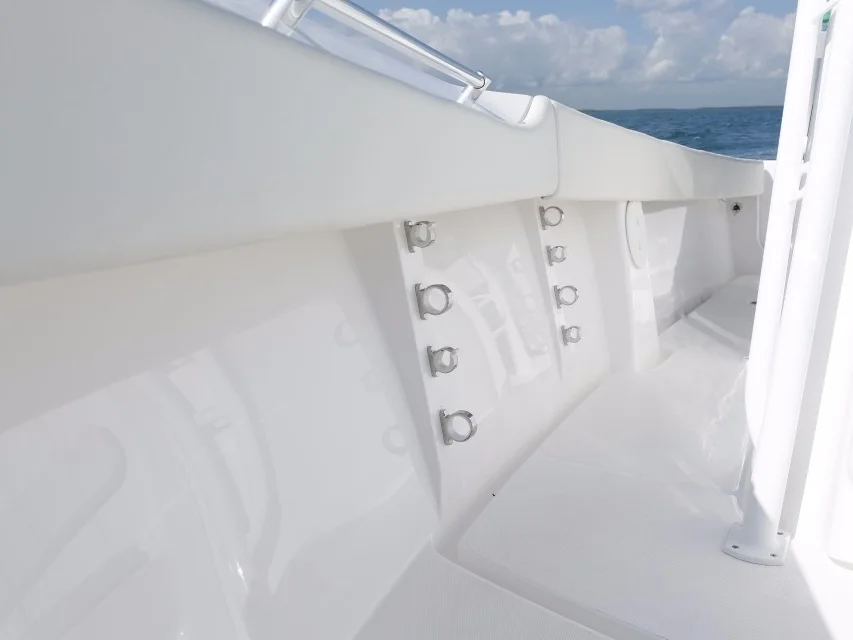

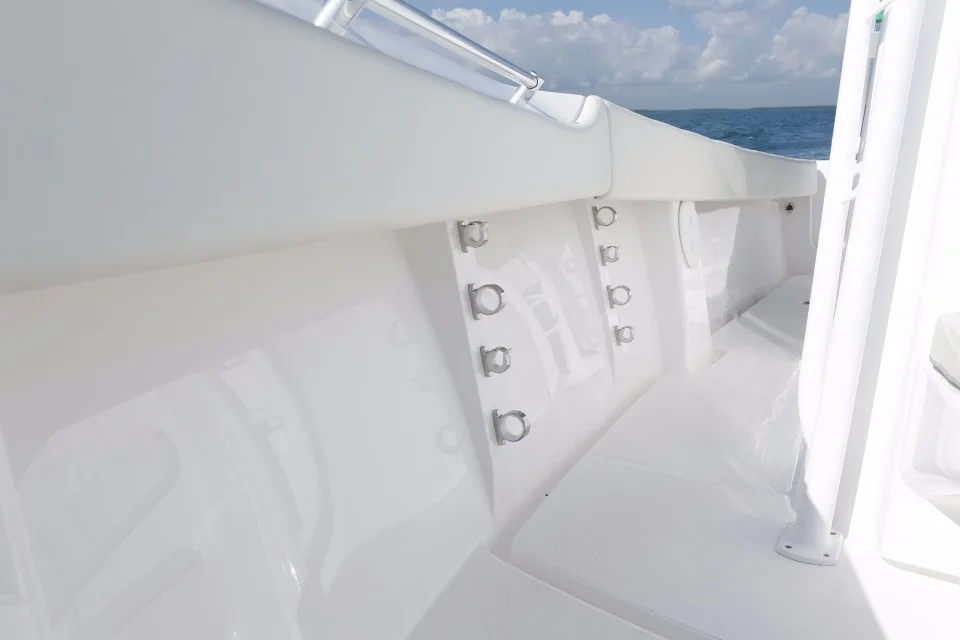

Horizontal Rod Storage Port & Starboard

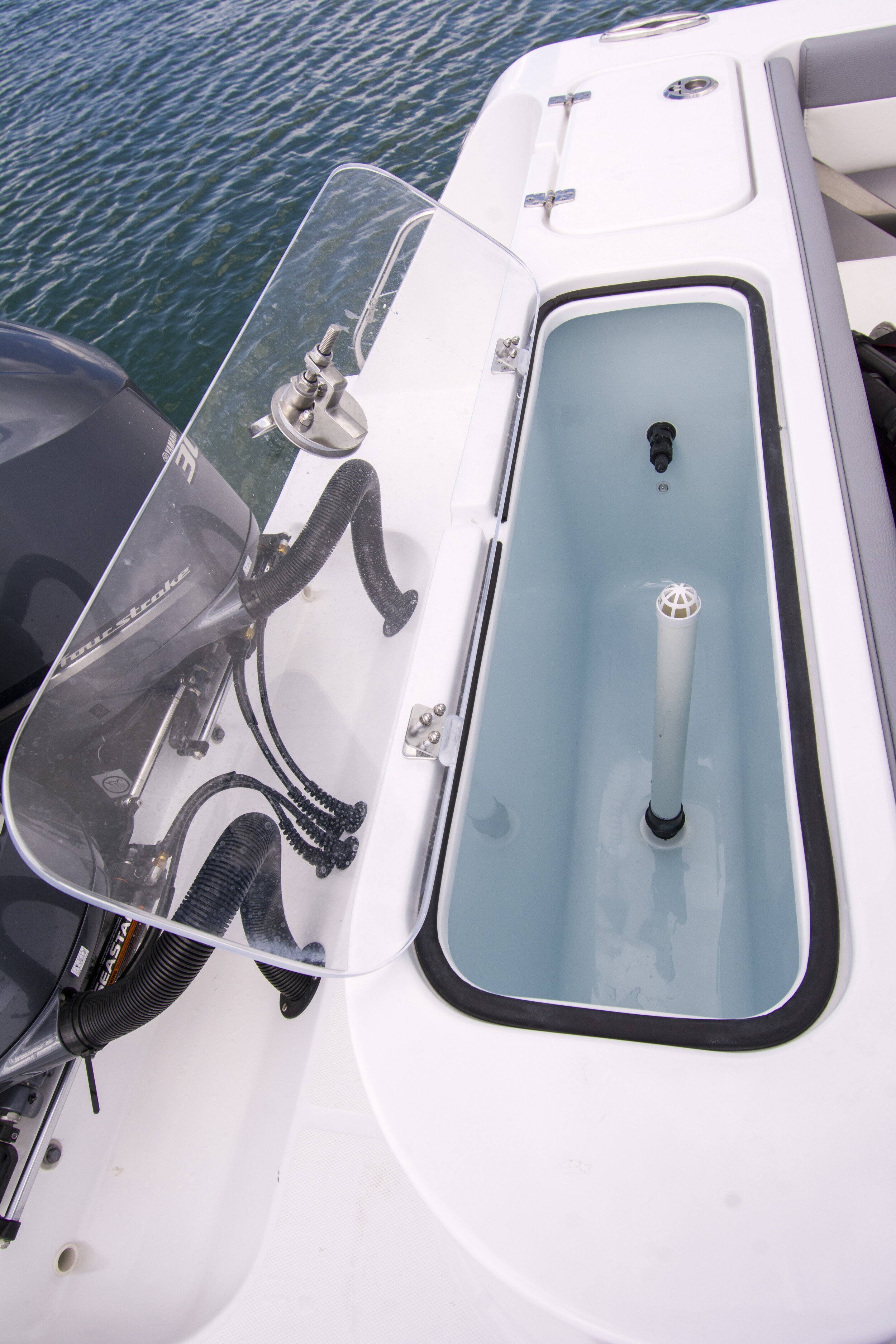

Aerated Transom Livewell
Swim Ladder

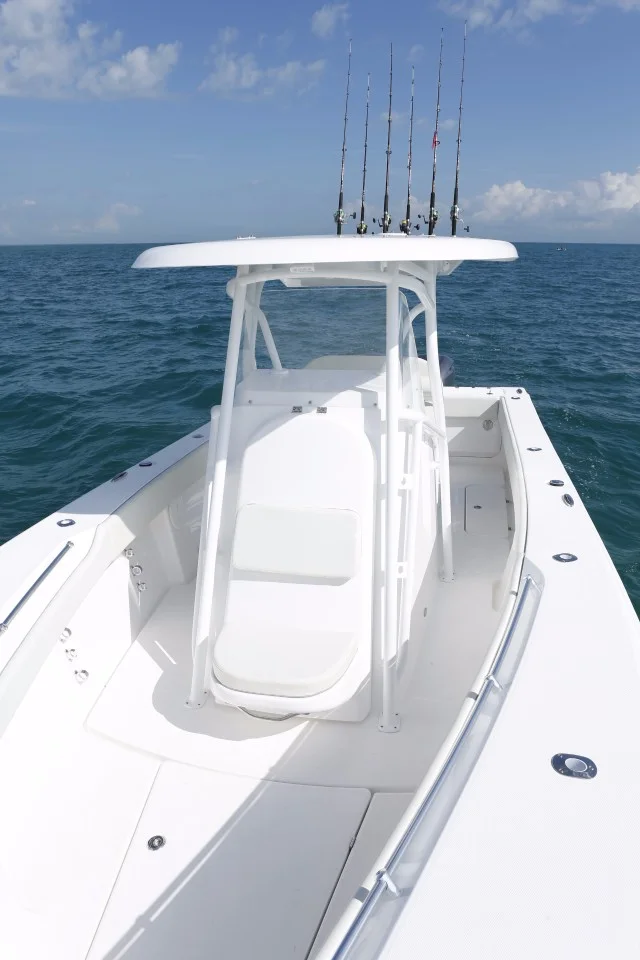

Optional Molded Fiberglass Hardtop with Electronics Box
Optional Powder Coat on Hardtop Frame
Optional Cockpit Bolsters, Full Boat
Optional Lewmar V700 Windlass

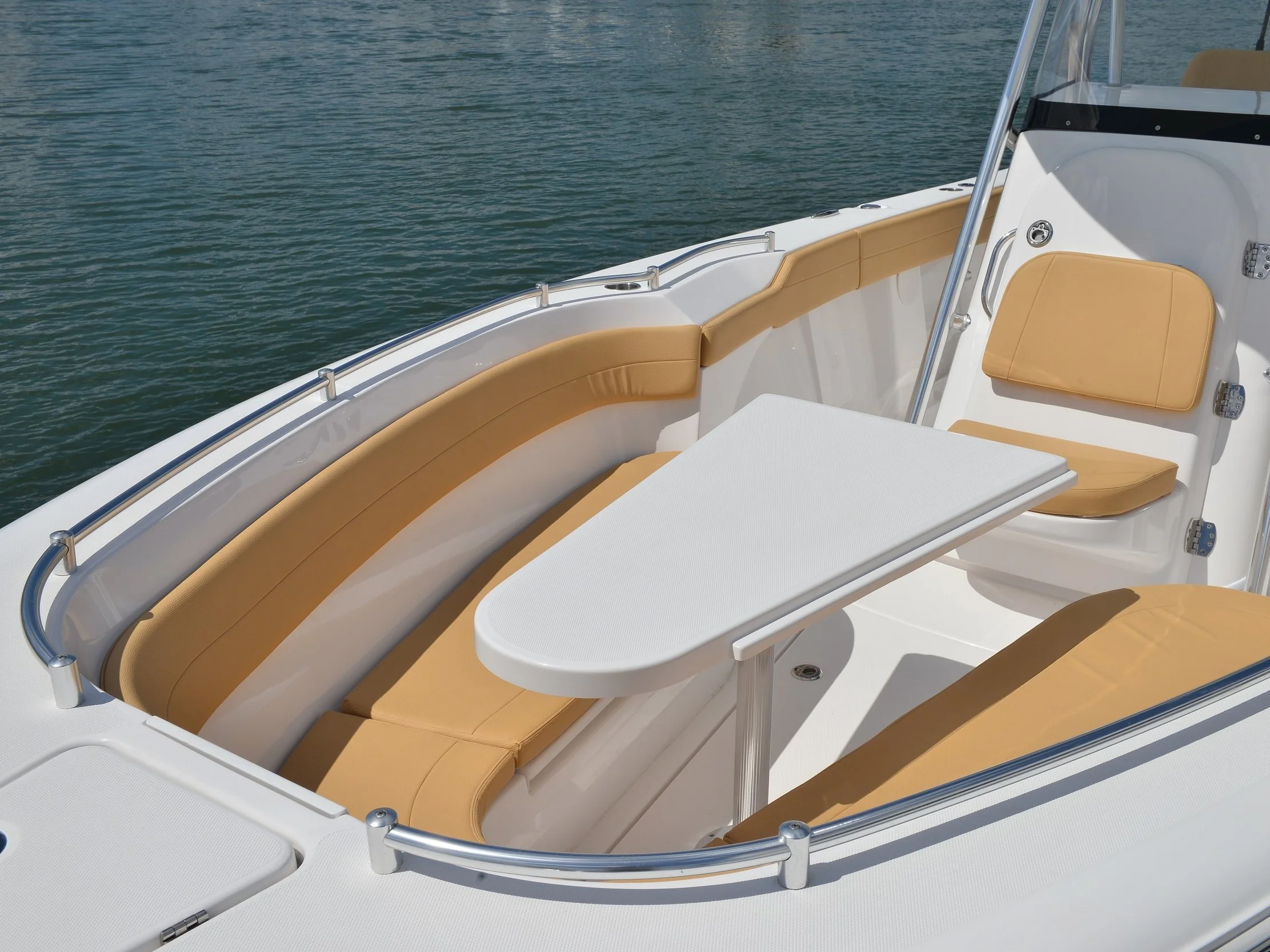

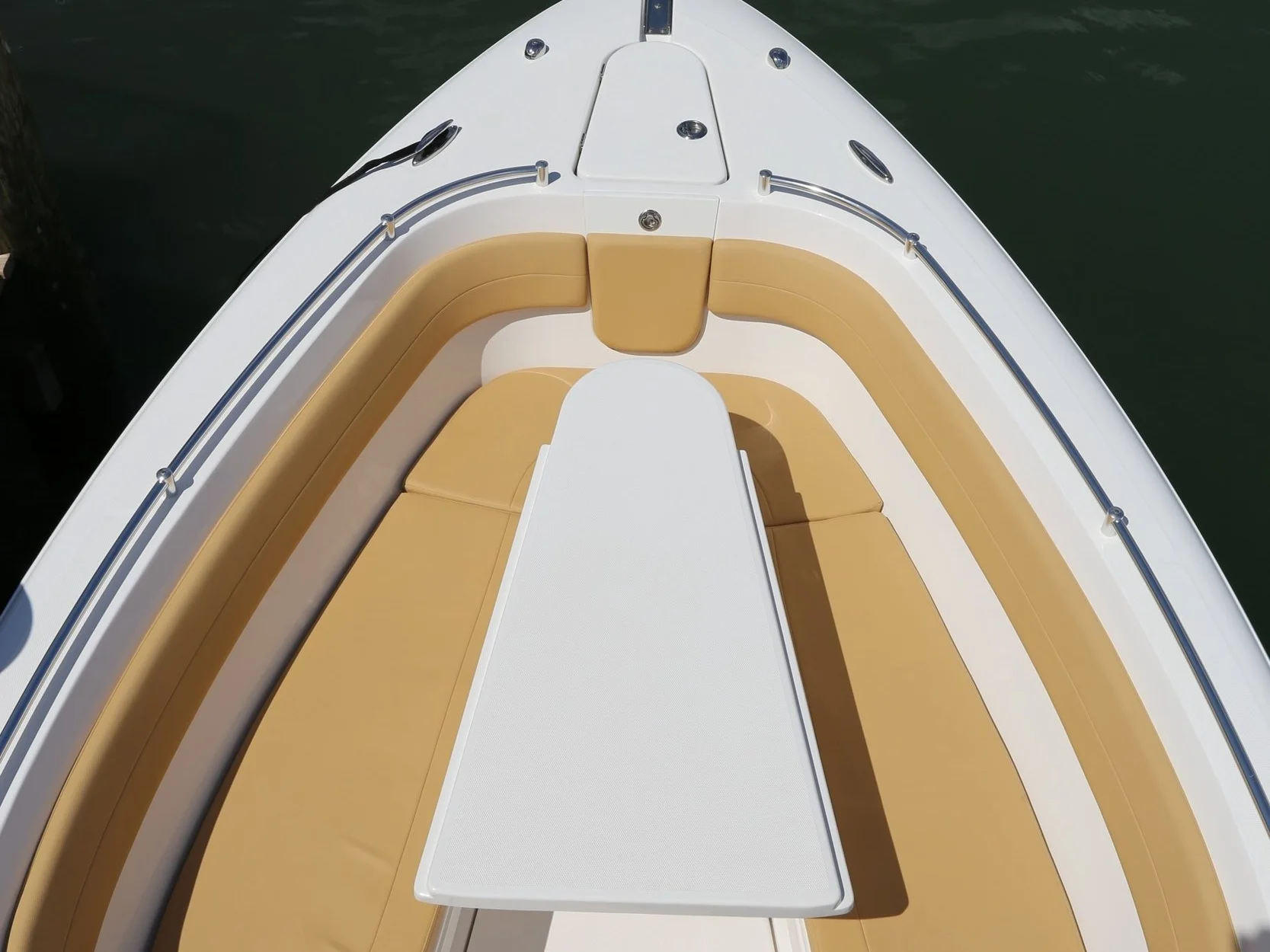

RXS: MODEL WITH FRONT SEATING

RXS: MODEL WITH FRONT SEATING

RXS: MODEL WITH FRONT SEATING

RXS: MODEL WITH FRONT SEATING

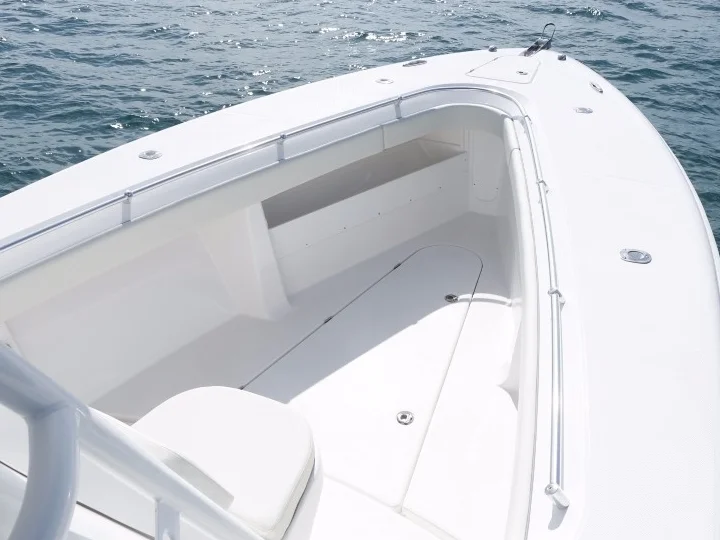

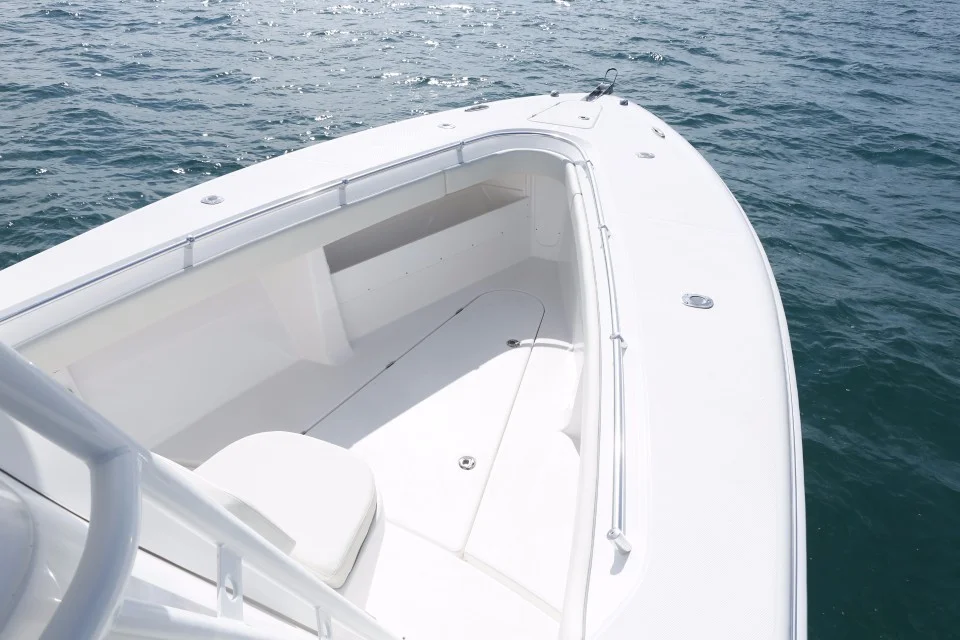

RX: NO FRONT SEATING. LARGE STORAGE COMPARTIMENT

RX: NO FRONT SEATING. LARGE STORAGE COMPARTIMENT

RX

RX


SPECIFICATIONS

Length 30’ 1”
Beam 9 ’ 6 ”
Deadrise 22.5˚
Fuel Capacity (approximate) 220 gal
Weight (approximate) 5500 lbs
HP Range 500 HP min - 600 HP max
Recommended 500 HP
